A web table (also known as an HTML table) is a structure used on web pages to display data in rows and columns, similar to a spreadsheet or an Excel file.
It is created using the table tag in HTML, and typically contains:
thead – defines the header section (optional)
tbody – defines the body containing the actual data rows
tr – defines a row
th – defines a header cell (usually the first row)
td – defines a regular data cell
There are different operations we can perform in the web table using a Selenium web driver.
The most frequent operation is:
- Verify the expected records in the web table
- Click the element/button in the web table when there are matching records
Navigate to https://www.qafeast.com/demo, and click the Web table tab.

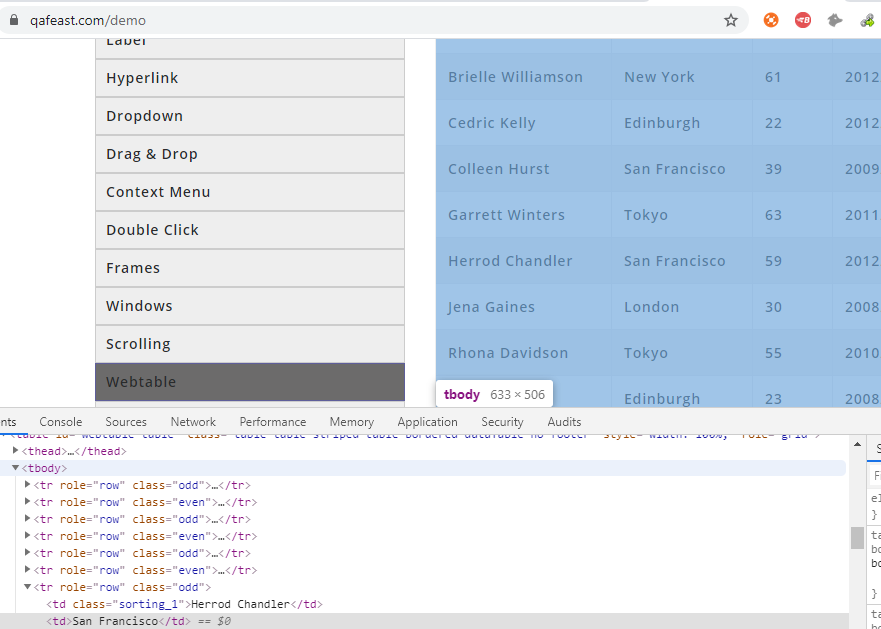

Press F12 on the keyboard and inspect web table
Verify the expected records in the web table
To verify the records in the webtable , we need to know how many rows and columns are there. The rows will be dynamic and columns are static. To iterate the webtable the number of rows will be taken "//tr" gives the number of rows and "th" denotes the column.
// To find the webtable
WebElement table = driver.findElement(By.xpath("//table[@id='webtable-table']/tbody"));
// Get all the rows
List rowsList = table.findElements(By.tagName("tr")); // Get row items
List columnsList = null;
rowsList.remove(0); // to remove the first row which contains the column names in th
// Iterate each row
for (WebElement row : rowsList) {
System.out.println(columnsList.get(0).getText()); // To get the first column of the row
System.out.println(columnsList.get(1).getText()); // To get the second column of the row
System.out.println(columnsList.get(2).getText()); // To get the third column of the row
System.out.println(columnsList.get(3).getText()); // To get the fourth column of the row
System.out.println(columnsList.get(4).getText()); // To get the fifth column of the row
# write a code logic to verify the expected text
}
Click the element/button in the web table when there is a matching record
WebElement table = driver.findElement(By.xpath("//table[@id='webtable-table']/tbody"));
List rowsList = table.findElements(By.tagName("tr")); // Get row items
List columnsList = null;
rowsList.remove(0); // to remove the first row which contains the column names in th
for (WebElement row : rowsList) {
System.out.println(columnsList.get(0).getText()); // To get the first column of the row
// Example
// To click if the text matches the expected Result
if(columnsList.get(1).getText().equals("Tiger Nixon")){
columnsList.get(1).click();
// break
}
}
Using Selenium Csharp
using OpenQA.Selenium;
using OpenQA.Selenium.Chrome;
namespace ConsoleApp1
{
internal class SeleniumTest
{
static IWebDriver driver;
static void Main(string[] args)
{
driver = new ChromeDriver(@"\\Driver\\chromedriver.exe");
//Implicit Wait:
driver.Manage().Timeouts().ImplicitWait = TimeSpan.FromSeconds(5);
driver.Navigate().GoToUrl("https://qafeast.com/demo");
((IJavaScriptExecutor)driver).ExecuteScript("arguments[0].scrollIntoView(true);", driver.FindElement(By.XPath("//label[text()='Webtable']")));
driver.FindElement(By.XPath("//label[text()='Webtable']")).Click();
//Verify the expected records in the web table
IList rowsList = driver.FindElements(By.TagName("tr")); // Get row items
IList colmsList;
// Iterate each row
Console.WriteLine("dfrgergertheth "+rowsList.Count);
for (int row= 1; row < rowsList.Count;row++)
{
colmsList = driver.FindElements(By.XPath("//tr["+row+"]//td"));
Console.WriteLine("dfrgergertheth " + colmsList.Count);
// Iterate each column
foreach (var col in colmsList)
{
Console.WriteLine(col.Text);
}
}
//Click the element/button in the web table when there is a matching records
IList rowsList1 = driver.FindElements(By.TagName("tr")); // Get row items
IList colmsList1;
// Iterate each row
for (int row = 1; row < rowsList.Count; row++)
{
colmsList1 = driver.FindElements(By.XPath("//tr[" + row + "]//td"));
// Iterate each column
foreach (var col in colmsList1)
{
if (col.Text.Equals("New York"))
{
col.Click();
Console.WriteLine("matching record is clicked");
}
}
}
driver.Quit();
}
}
}
